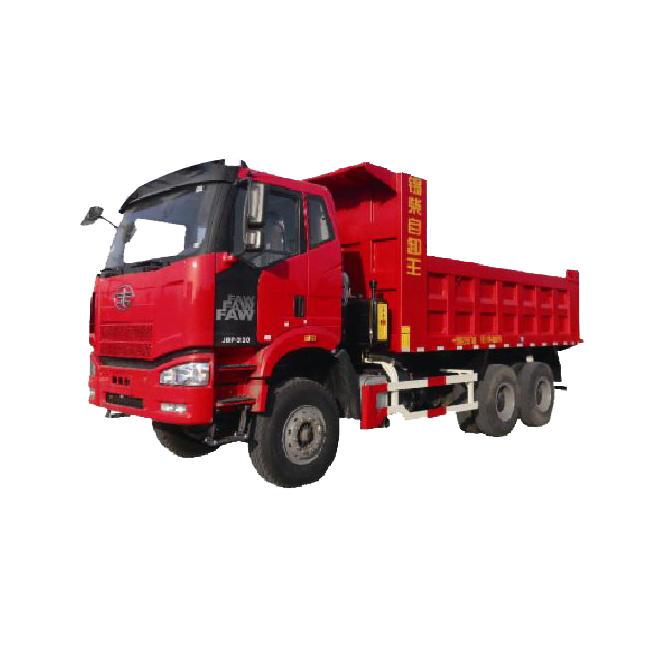

[Dump Truck]Cab Over Engine Truck 6x4 Common Site

Working Condition		Multi-slope site/common site
Chassis Model		CA3250P66K2L0BT1AE4(EuroIV)
Drive System		6×4
Tare Weight(kg)		12145/12185
Rated Load(kg)		12030/11990
Outline Dimension(mm)		8158~9250×2500×3680
Body Internal Dimension(mm)		5400~6800×2300×1172/1034
Engine Model		CA6DL2-31/35E4U2
Engine Power(Hp)		310/350
Gearbox		CA10TA160M/CA12TA160M
Clutch		Ф430
Cab		J6P
Drive axle		Ф300 Casting Axle and Round Edge Deceleration Bridge (5.921)
Tire		12.00R20-18
Wheel base(mm)		3800/ 4050+1350
Wheel Track(mm)		2020 / 1840/1840
Top speed(km/h)		85
Others Information		air exhaust brake, air conditioner
Upper Parts	Structures	Carriage With U-shaped or channel-shaped, one single door or triple doors(only channel-shaped)
	Plate Dimension	10mm bottom，8mm side(16Mn)
	Lifting Mechanism	front lifting
	Oil Cylinder	Φ180 /Φ157( Hyva)
Recommended chassis models		B031H384M1MB632A B031H384R1TB631AE B031H404R1TB704AE
