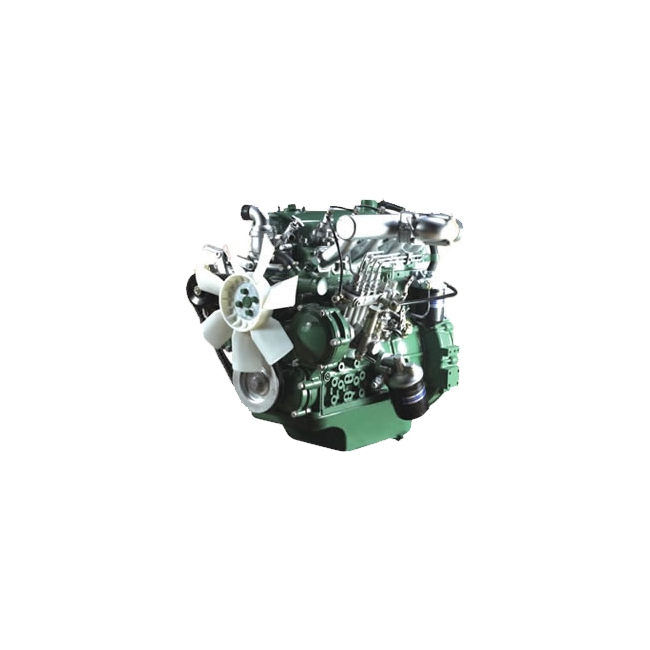

Автомобильный двигатель ЕВРО II
| Model | 4DW82-62 | 4DW92-73 |
| Type | 4-cylinder in-line, direct injection, water cooling, turbocharged | |
| Bore×Stroke (mm) | 85×95 | 90×100 |
| Valves/cylinder | 2 | |
| Displacement (L) | 2.16 | 2.54 |
| Rated power | 46 | 54 |
| Rated speed (r/min) | 3200 | |
| Net power/speed (kW/r/min) | 43 | 50 |
| Maximum torque (Nm) | 158 | 188 |
| Maximum torque speed (r/min) | 2100 | |
| Fuel consumption (g/kW·h) | 225 | |
| Smoke (m-1) | ≤ 3.0 | |
| Noise dB (A) | ≤ 95.5 | |
| Emission Compliant (TAS) | EURO Ⅱ | |
| Net Mass (kg) | 270 | |
| Length×Width×Height (mm) | 750×600×735 | |
| Model | 4DW83-73 | 4DW93-80 | 4DW93-84 |
| Type | 4-cylinder in-line, direct injection, water cooling, turbocharged inter-cooled | ||
| Bore×Stroke (mm) | 85×95 | 90×100 | |
| Valves/cylinder | 2 | ||
| Displacement (L) | 2.16 | 2.54 | 2.54 |
| Rated power | 54 | 58.8 | 62 |
| Rated speed (r/min) | 3000 | 2800 | 3000 |
| Net power/speed (kW/r/min) | 52 | 55 | 58 |
| Maximum torque (Nm) | 200 | 230 | 230 |
| Maximum torque speed (r/min) | 1800 | ||
| Fuel consumption (g/kW·h) | 225 | ||
| Smoke (m-1) | ≤ 3.0 | ||
| Noise dB (A) | ≤ 95.5 | ||
| Emission Compliant (TAS) | EURO Ⅱ | ||
| Net Mass (kg) | 250 | ||
| Length×Width×Height (mm) | 725×655×700 | ||
