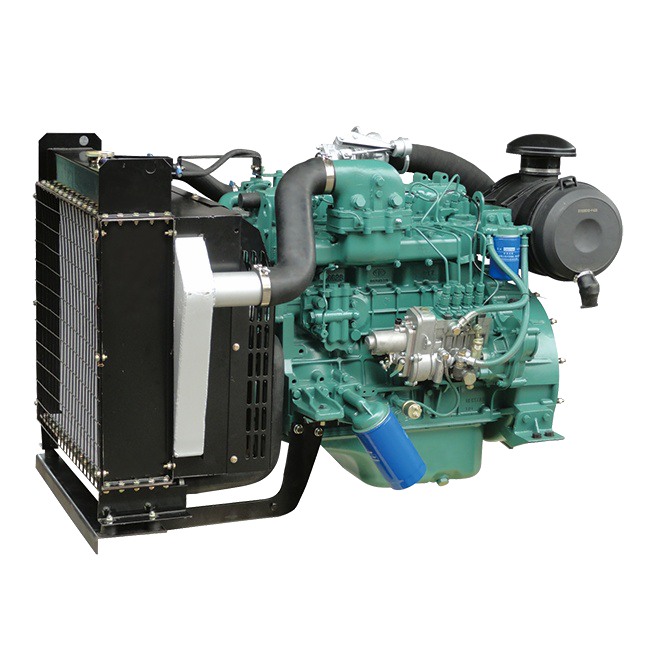

4DF Generating Set Engine

Rated speed: 1500rpm

Engine model	4110/125Z-09D	CA4DF2-12D
Type	4-cylinder 4-stroke
Air intake type	Turbocharged	Turbocharged& intercooling
Cooling mode	Water cooling
Governor mode	electronic
Bore×Stroke(mm）	110×125
Compression ratio	17.5:1
Rated speed(rpm)	1500
Displacement(L)	4.75
Rated power(without fan)(kW)	65	84
Standby power(without fan)(kW)	72	92
Fuel consumption(g/kWh)	215	205
Oil consumption(L/h)	0.08	0.08
Steady state speed regulation(%)	≤3
Oil capacity including filter(L)	16
Emission compliant	StageⅡ
The flywheel shell interface	SAE3
The flywheel shell interface	Flywheel for 11.5″flexible coupling
Dry weight of Gen Pac(kg)	609	620
Overall dimension(mm)	1353×680×952
Fan consumption（kW）	4	4
27℃ air consumption（m3/min）	4.6	5.3
Heat rejection of exhaust（kW）	46	55
Exhaust gas temperature after turbine（℃）	450	450
Exhaust gas flow（m3/min）	12.3	14.2
Heat rejection from engine（kW）	4.3	4.8
Heat rejection of coolant（kW）	36	40
Base configuration	Standard configuration(add on the base)
Engine with fan	Intake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe
Alternator 65A 28V Starter motor 5kW 24V	Cooling system: Radiator; Connecting pipes; Fan guard; Belt guard

Rated speed: 1800rpm

Engine model	4110/125Z-11D	CA4DF2-14D
Type	4-cylinder 4-stroke
Air intake type	Turbocharged	Turbocharged& intercooling
Cooling mode	Water cooling
Governor mode	electronic
Bore×Stroke(mm）	110×125
Compression ratio	17.5∶1
Rated speed(rpm)	1800
Displacement(L)	4.75
Rated power(without fan)(kW)	80	101
Standby power(without fan)(kW)	88	110
Fuel consumption(g/kWh)	215	205
Oil consumption(L/h)	0.08	0.08
Steady state speed regulation(%)	≤3
Oil capacity including filter(L)	16
Emission compliant	StageⅡ
The flywheel shell interface	SAE3
The flywheel shell interface	Flywheel for 11.5″flexible coupling
Dry weight of base(kg)	470	480
Dry weight of Gen Pac(kg)	579	609
Fan consumption（kW）	7	7
Base configuration	Standard configuration(add on the base)
Engine with fan	Intake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe
Alternator 65A 28V Starter motor 5kW 24V	Cooling system: Radiator; Connecting pipes; Fan guard; Belt guard
