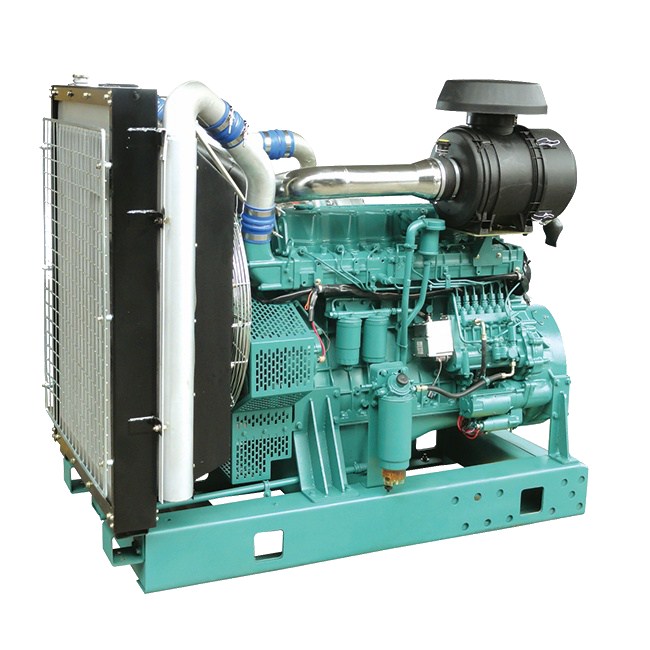

6DL Generating Set Engine

Rated speed: 1500rpm

Engine model	CA6DL1-24D	CA6DL2-27D	CA6DL2-30
Type	6-cylinder 4-stroke
Air intake type	Turbocharged& intercooling
Cooling mode	Water cooling
Governor mode	Electron
Bore×Stroke(mm）	110×135	112×145
Compression ratio	17.5: 1
Rated speed(rpm)	1500
Displacement(L)	7.70	8.57
Rated power(without fan)(kW)	176	205	227
Standby power(without fan)(kW)	194	226	251
Fuel consumption(g/kWh)	196	195	195
Oil consumption(L/h)	0.06	0.06	0.06
Steady state speed regulation(%)	≤3
Oil capacity including filter(L)	28	30	30
Emission compliant	StageⅡ
The flywheel shell interface	SAE2
The flywheel shell interface	Flywheel for 11.5″flexible coupling
Dry weight of base(kg)	780	800	800
Dry weight of Gen Pac(kg)	1110	1131	1131
Overall dimension(base)(mm)	1345×750×1150
Overall dimension(G.P)(mm)	1698×948×1490
Fan consumption（kW）	8	9	9
27℃ air consumption（m3/min）	12	14	15
Heat rejection of exhaust（kW）	126	140	160
Exhaust gas temperature after turbine（℃）	460	460	470
Exhaust gas flow（m3/min）	34	40	45
Heat rejection from engine（kW）	10.8	12	13.2
Heat rejection of coolant（kW）	86	96	106
Base configuration	Standard configuration
Engine with fan	Intake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe
Alternator 75A 28V	Cooling system: Radiator ; Connecting pipes; Fan guard; Belt guard
Starter motor 6kW 24V	Extendable base frame; Manual oil drain pump

Rated speed: 1800rpm

Engine model	CA6DL1-27D	CA6DL2-32D
Type	6-cylinder 4-stroke
Air intake type	Turbocharged& intercooling
Cooling mode	Water cooling
Governor mode	Electronic
Bore×Stroke(mm）	110×135	112×145
Compression ratio	17.5: 1
Rated speed(rpm)	1800
Displacement(L)	7.70	8.57
Rated power(without fan)(kW)	195	235
Standby power(without fan)(kW)	215	259
Fuel consumption(g/kWh)	196	195
Oil consumption(L/h)	0.06	0.06
Steady state speed regulation(%)	≤3
Oil capacity including filter(L)	28	30
Emission compliant	StageⅡ
The flywheel shell interface	SAE2
The flywheel shell interface	Flywheel for 11.5″flexible coupling
Dry weight of base(kg)	780	800
Dry weight of Gen Pac(kg)	1110	1131
Fan consumption（kW）	11
Base configuration	Standard configuration
Engine with fan	Intake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe
Alternator 75A 28V	Cooling system: Radiator; Connecting pipes; Fan guard; Belt guard
Starter motor 6kW 24V	Extendable base frame; Manual oil drain pump
